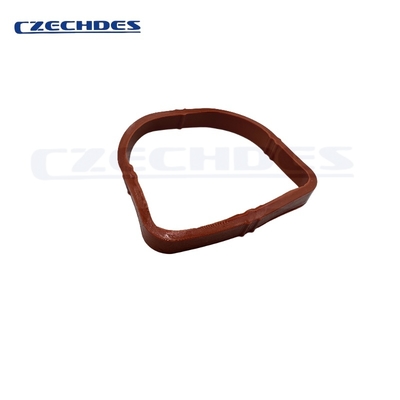

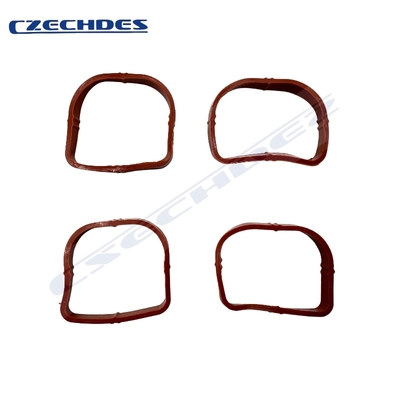

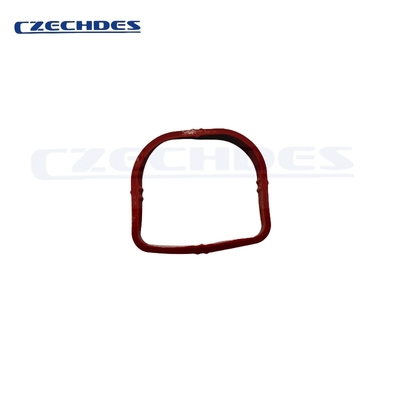

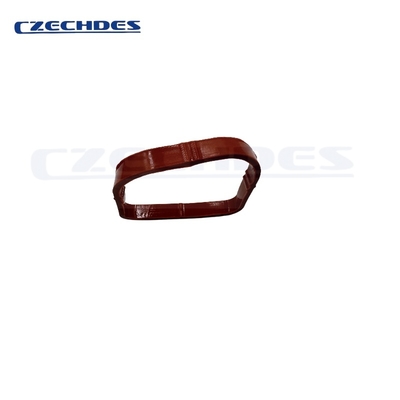

MLS Engine Intake Manifold Gasket Seal 11617530703 For BMW N20 N26 N55 N63
| MOQ: | 50PCS |
| Price: | Negotiation |
| Standard Packaging: | Cardboard box or Wooden box |
| Delivery Period: | 5-15Days |
| Payment Method: | L/C,D/A,MoneyGram,D/P,T/T,Western Union |
| Supply Capacity: | 3000 |
MLS intake manifold gasket seal
,BMW N26 intake manifold gasket seal
,11617530703
Cost-effective Engine Intake Manifold Gasket 11617530703 For BMW N20 N26 N55 N63
1. Product Overview
Technical Principle
The intake manifold gasket provides an airtight seal between the engine cylinder head and intake manifold. It prevents:
-
Unmetered air leaks (causing lean mixture)
-
Loss of intake vacuum (affecting brake booster operation)
-
Contamination from external debris
BMW's precision engineering requires this gasket to maintain exact tolerances for optimal air/fuel mixture distribution across all cylinders.
2. Key Features
| Feature | Description |
|---|---|
| Material | Multi-layer steel (MLS) with elastomer coating |
| Temp. Range | -40°C to +220°C (short peak 250°C) |
| Pressure Rating | 1.8 bar continuous (3.0 bar burst) |
| Thickness | 1.25mm ±0.05mm (compressed) |
| Seal Type | Perimeter + port-sealing design |
3. Vehicle Compatibility
| Model | Engine | Years |
|---|---|---|
| 3 Series (F30) | N20/N26 | 2012-2018 |
| 5 Series (F10) | N55 | 2010-2016 |
| X3 (F25) | N20 | 2011-2017 |
| X5 (E70) | N63 | 2007-2013 |
4. Applications
-
Prevents vacuum leaks in turbocharged/supercharged engines
-
Maintains MAF sensor accuracy
-
Essential for proper Valvetronic/VANOS operation
-
Required during:
-
Intake manifold removal
-
Carbon cleaning services
-
Engine overhaul
-
5. Manufacturing Process
-
Laser-cutting stainless steel layers
-
Micro-embossing sealing surfaces
-
Robotic application of high-temp silicone beads
-
Vision-system QC for pore/defect detection
-
100% pressure testing at 2.5 bar
6. Installation Procedure
Tools Required:
-
Torque wrench (8-25Nm range)
-
BMW-approved sealant (only for specified areas)
-
OEM gasket removal tool (BMW #83300493875)
Steps:
-
Clean mating surfaces with plastic scraper
-
Apply alignment pins (prevents gasket shift)
-
Torque sequence:
-
Stage 1: 8Nm
-
Stage 2: 15Nm
-
Final: 22Nm (cross pattern)
-
-
Wait 30 mins before pressure testing
7. FAQ
Q: Can this be reused after removal?
A: Never - BMW specifies single-use only due to MLS compression memory.
Q: Symptoms of failure?
A: P0171/P0174 codes, whistling noises at partial throttle, erratic idle.
Q: What are the key benefits of this product?
A: Our gaskets have:
-
Thinner but stronger steel layers
-
Precisely calibrated bead heights
-
BMW-approved corrosion coating
