High-End Quality Engine Oil Pan Drain Plug Gasket 07119963151 For BMW G20 G28 G30 G38 G01 G05
| MOQ: | 20PCS |
| Price: | Negotiation |
| Standard Packaging: | Cardboard box or Wooden box |
| Delivery Period: | 5-15Days |
| Payment Method: | L/C,D/A,MoneyGram,D/P,T/T,Western Union |
| Supply Capacity: | 5000 |
gasket car engine seals
,bmw car engine seals
,bmw engine timing cover gasket

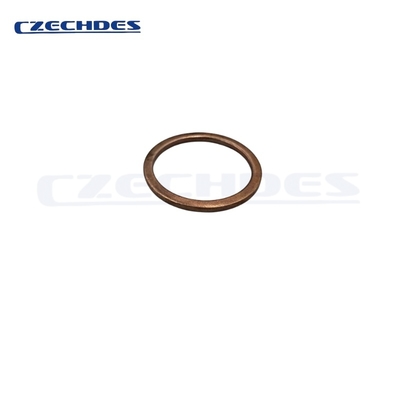

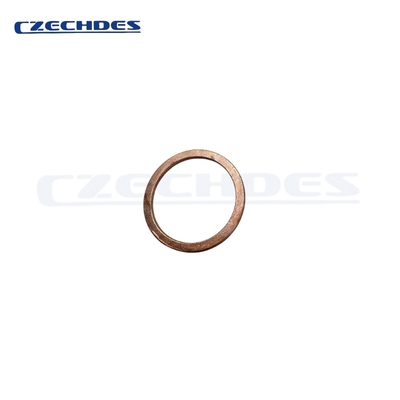

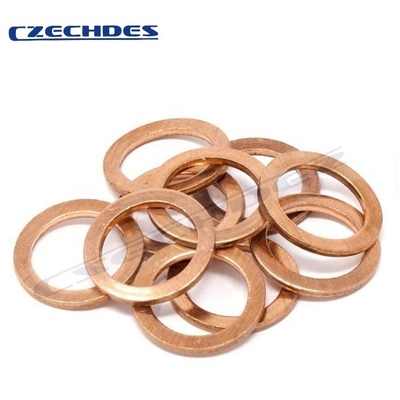

High-End Quality Engine Oil Pan Drain Plug Gasket 07119963151 For BMW G20 G28 G30 G38 G01 G05
1.Product Overview
-
Part Number: 07119963151
-
Compatibility: BMW full range (specific models to be confirmed via BMW OEM parts catalog)
-
Product Type: OEM oil pan drain screw sealing gasket
-
Core Function: Ensures smooth engine oil drainage, prevents leaks, and protects the engine lubrication system
2.Key Features
OEM Quality
-
BMW genuine part, 100% compatible with original drain screws for optimal sealing
-
Made from high-strength aluminum/copper alloy or special composite materials, resistant to high temperatures and corrosion
Precision Fit
-
Manufactured to exact BMW OEM specifications for perfect alignment with oil pan threads
-
Prevents oil leaks or thread damage caused by dimensional mismatches
Long-Lasting Durability
-
Resistant to oil, high temperatures (-40°C to +200°C), and maintains shape under prolonged use
-
Some models allow reuse (refer to specific vehicle requirements)
Easy Installation
-
No special tools required; replace during every oil change
-
Torque to OEM specifications to avoid over-tightening and deformation
3.Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Crush washer (metal) |
| Material | Aluminum/copper alloy (some models may use composite materials) |
| Inner Diameter (ID) | 12mm (varies by model) |
| Outer Diameter (OD) | 18mm (varies by model) |
| Thickness | 1.5mm (standard) |
| Temperature Range | -40°C to +200°C |
| Installation Torque | 18-25 Nm (refer to BMW service manual) |
4.Compatibility Chart
| BMW Model | Engine Code | Notes |
|---|---|---|
| 3 Series (G20/G28) | B48/B58 | Confirm drain screw specs |
| 5 Series (G30/G38) | B48/B58/N63 | Some diesel engines compatible |
| X3 (G01) | B48/B58 | |
| X5 (G05) | B58/N63/S63 | M models may require special gaskets |
Note:
-
Slight variations may exist across model years and engine types; verify fitment using VIN
-
High-performance models (e.g., M Power) may use unique gaskets
5.Working Principle
-
Crush Sealing (Metal Gaskets):
-
Torque application during installation deforms the washer to fill microscopic gaps between the drain plug and oil pan
-
Creates a metal-to-metal seal to prevent oil leaks
-
-
Elastic Sealing (Rubber/Composite Gaskets):
-
Material elasticity compensates for surface imperfections
-
Maintains stable sealing under oil pressure and temperature fluctuations
-
6.Primary Applications
Essential for Oil Changes
-
Must be replaced during every oil change to ensure reliable sealing
Prevents Lubrication System Leaks
-
Avoids oil seepage due to poor sealing, safeguarding the engine
Maintains Engine Performance
-
Ensures oil pan integrity, maintains proper oil pressure, and extends engine life
7.Installation Guidelines
-
Pre-Installation Cleaning: Ensure drain plug threads and gasket contact surfaces are free of oil and debris
-
Correct Torque: Use a torque wrench to tighten to specified values (typically 18-25Nm)
-
Replacement Interval: Replace with every oil change
-
Leak Check: Start the engine post-installation to verify no leaks
8.FAQ
Q: Can this gasket be reused?
A: Not recommended. While some aluminum gaskets may temporarily be reused if undamaged, replacement is advised.
Q: What if there’s slight oil seepage after installation?
A: Check for improper cleaning or insufficient torque. Replace the gasket if necessary.
Q: Are these gaskets universal across BMW models?
A: Mostly yes, but high-performance variants may have unique requirements—always confirm part number.
