RoHS Automotive Engine Left Valve Cover Gasket Parts C2S34512

Engine Components  Engine Left Valve Cover Gasket C2S34512 For Jaguar XF XE XJ F-PACE

1. Product Overview

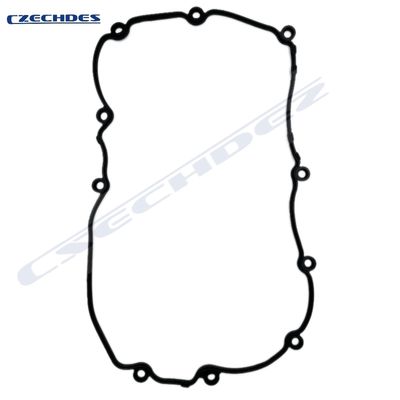

    Jaguar Engine Left Valve Cover Gasket (Part No.: C2S34512)
    A premium sealing component specifically designed for Jaguar vehicles to prevent oil leaks between the left valve cover and engine block, ensuring optimal engine performance and sustained lubrication.

2. Key Features

• Premium Material: High-temperature and oil-resistant specialty rubber composite for long-term stability

• Precision Fit: Engineered specifically for Jaguar engines with perfect OEM compatibility

• Enhanced Sealing: Unique wave-shaped sealing edge design provides dual leak protection

• Extended Lifespan: Anti-aging formulation offers 50% longer service life than standard gaskets

• Eco-Certified: Complies with EU RoHS environmental standards

3. Jaguar Vehicle Compatibility Chart

4. Technical Specifications

• Operating Temperature: Stable performance from -45℃ to +220℃

• Pressure Rating: Withstands continuous oil pressure up to 5.5Bar

• Deformation Rate: <0.5% (tested at 150℃)

• Tensile Strength: ≥12MPa

• Environmental Compliance: Meets EU 2005/69/EC regulations

5. Working Principle

• Dynamic Compensation: Special elastomer material automatically adjusts for thermal expansion/contraction

• Micro-Sealing: Surface micro-texture enhances oil film retention

• Stress Distribution: Multi-layer buffer design evenly distributes fastening pressure

• Chemical Resistance: Built-in anti-corrosion layer protects against oil additive degradation

6. Primary Applications

• Oil Leak Repair: Permanently resolves valve cover seepage issues

• Preventive Maintenance: Recommended replacement every 60,000km or 5 years

• Performance Protection: Maintains engine bay cleanliness and prevents electrical corrosion

• Overhaul Component: Standard replacement part during engine rebuilds

7. Professional Installation Guide

1. Surface Preparation: Use specialized cleaner to remove old sealant residue

2. Positioning: Align arrow marking toward engine front

3. Torque Sequence: Three-stage cross tightening (5Nm→8Nm→10Nm)

4. Curing Time: Allow 2 hours after installation before engine start

5. Quality Inspection: Verify seal integrity with helium leak detector
