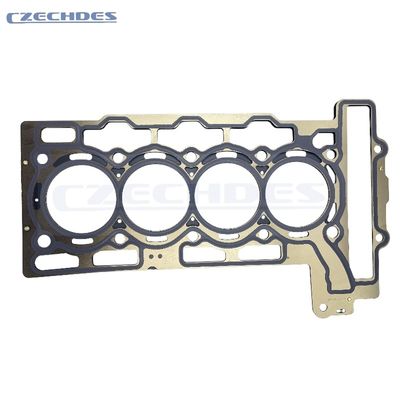

For BMW 11127595138 Cylinder Head Gasket Engine Repair Kit OEM

3. Working Principle

The cylinder head gasket serves as a critical sealing interface between the engine block and cylinder head, engineered to:

• Withstand extreme combustion pressures (up to 200 bar in turbocharged engines)
•  Seal multiple fluid passages (coolant jackets, oil galleries, and combustion chambers)
• Compensate for thermal expansion (aluminum head vs. iron block differential expansion)

Key Technologies:

• Multi-Layer Steel (MLS) Design:

  • 3-5 laser-welded stainless steel layers with elastomer coating

  • Provides spring-like resilience to maintain seal under thermal cycling

• Fire Rings (Combustion Seals):

  • Laser-cut high-nickel alloy rings around each cylinder bore

  • Prevents burn-through from 1,500°C+ combustion temps

• Micro-embossed Surface Coatings:

  • 100-200μm thick silicone/rubber layers on outer surfaces

  • Fills microscopic machining imperfections (Ra ≤1.6μm required)

  •


4.Primary Applications

A. Factory Repair & Maintenance

• Blown head gasket symptoms:

  • Coolant/oil mixing ("milkshake" in oil cap)

  • Compression loss (>15% variance between cylinders)

  • Exhaust gas bubbles in coolant reservoir

B. Performance Engine Builds

• Required for:

  • Engine overhauls (after head/block resurfacing)

  • Turbo upgrades (higher boost pressure compatibility)

  • Forced induction conversions

C. Critical Protection Functions

5. BMW-Specific Engineering

Adaptations for B48/B58 Engines:

• Asymmetric Bore Spacing: Compensates for cylinder deactivation hardware (B58TU)

• Laser-Drilled Coolant Channels: Matches precision-machined head passages

• Torque-to-Yield Bolt Compliance: Designed for BMW's 3-stage head bolt tightening sequence

OEM vs. Aftermarket Comparison
